PRODUCTS - Marsh McBirney Flowmeters


click for more product information

Marsh McBirney Flowmeters Hach Flow & Marsh McBirney Flowmeters

(EST Environmental Techonlogies Ltd is proud to be the Exclusive Representative for Hach Flow and Marsh McBirney Flowmeters for the Province of British Columbia.

We offer full product support as well as equipment rental for your long term or short term flow studies.

Providing sales, service and support for the popular Flo-Dar, Flo-Tote, and FH950, Flo-Mate flowmeters for British Columbia.

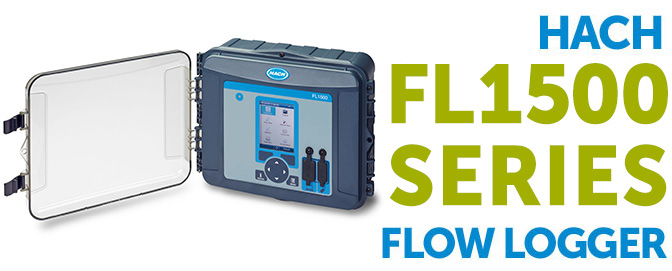

New product launch: The Hach FL1500 logger is now available as the latest replacement to the popular FloStation.

For more information about the new Hach FL1500 >>click here<<

The Hach FL 1500 is the flow monitoring solution for measuring and logging open channel flow. Compatible with all of Hach's flow sensor technologies, it collects reliable flow data from even the most challenging of sites and hydraulic conditions.

Flow sensor technologies include:

  • Non-contact radar
  • Electromagnetic
  • Depth pressure
  • Doppler, ultrasonic
  • Bubble level

The easy-to-use color screen simplifies setup and reduces programming errors. Use FSDATA Desktop Data Management Software to take control of your data, program the flow meter, upload and download data, and easily create reports.



Hach FH950 Portable Velocity Flowmeter

The Hach FH950 Video Demonstration - Product Overview >> CLICK HERE



NEW!  The Hach FH950 is the successor to the popular Marsh Model 2000. Now with the FH950 the standard unit comes with portable velocity measurement, with a further (firmware and sensor upgrade) option to have integrated depth measurements (new feature /optional feature).

Now with a standard disconnectable sensor, the FH950 is versatile in that you can buy sensors of different cable lengths to suit your needs: 5ft, 20ft, 40ft, 100ft and switch between sensors easily.

For more information about this device please click >> FH950 - Portable Flowmeter Inquiry to receive your customized quotation and full product brochure.

** Standard FH950 includes sensor with only velocity measurement (6ft cable standard)

** Option for FH950 to include both velocity and depth measurement is optional.

For FH950 existing users who want to upgrade their existing FH950 devices to handle both the new velocity and depth sensors, they only need to do a free firmware update to their FH950 device and then purchase a new sensor that measures both velocity and depth. If you have further questions, send us an email for more details.



The FH950 is now available as either velocity only, or velocity + depth measurement!

See the difference the new FH 950 makes!
  • Reduce man-hours 50% --the step by step user interface simplifies programming, delivers real time data, and downloads direct to PC -- allowing a single person to take the readings and eliminating post site visit manual data transfer from log book to PC
  • Automatically calculates total discharge based on USGS and ISO methods--reduces time to manually calculate and likelihood of errors
  • Real-time velocity graphed on color displaygiving a quick visual reading of velocity trends
  • The color bar indicator on the display guides the user to position the sensor at the ideal depth location, making accurate depth measurement collection easy
  • One of the lowest maintenance solutions on the market electromagnetic velocity sensor with no moving parts never requires mechanical maintenance
  • Lightweight, rugged portable meter—only 1.5 pounds
  • Water resistant electronics
  • Rechargeable portable meter
  • Data Storage for up to 10 profiles and 32 stations per profile
  • Easy-to-use menu-driven interface display remains readable even in bright sunlight

Ideal Applications include:
  • Rivers
  • Weir/Flume/Flow Meter Calibration
  • Sewers
  • Mining Channels
  • Irrigation Channels
  • Ideal for use in waters with organic matter; the magnetic inductive measurement principle is not negatively affected by these conditions like acoustics or mechanical meters

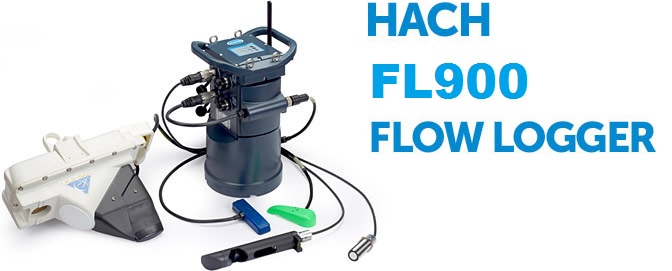

The New Hach FL900 series Logger (wireless & non-wireless)

The new Hach FL 900 Series Flow Logger continues where the original Flo-Logger began. The FL900 series now revolutionizes remote, open channel flow monitoring by providing rugged and reliable innovative solutions for any sewer flow measurement challenge.

From pairing with the industry-leading non-contact FLO-DAR AV Sensor to utilizing wireless communication options with free data hosting, the Hach FL 900 is designed to reduce your monitoring costs, increase your efficiency, and provide better data with less hassle than you ever thought possible. Armed with accurate data from a full suite of sensors, and more time for insightful analysis, the Hach FL 900 Series Flow Logger empowers you to begin proactively developing solutions before issues rear their ugly heads.



For a video animation of the features and benefits of the Hach FL900 <<click here>>

For a video animation of the features and benefits of the Flo-Dar sensor <<click here>>





The Hach FL900 series with Level Alarming US9001B sensor

Painting the full flow picture of your entire wastewater collection system can be a costly endeavor, especially when you have hundreds of manholes and miles and miles of pipe. But with Hach's level-alarming solution, you can capture data from more sites in your network without crushing your budget. Just pair our new Hach US9001B Ultrasonic Sensor with Ballast with a wireless Hach FL 900 Series Flow Logger and you have an intelligent, economical answer.

No confined space entry. Simple installation.
More than just a CSO/SSO alarm. Also captures flow data utilizing flumes, weirs or Manning's equation.
Displays real-time data through FS DATA Online Data Manager software.
Available with Data Delivery Services (DDS) or as an instrument purchase.


By using highly accurate FLO-DAR® AV Sensor monitoring for critical primary sites and then employing this economical level-alarming system at secondary locations, you can smartly expand your system awareness and still live within your financial plan.
From simple installation to maintenance
it doesn't get much easier.





The Popular Flo-Dar Open Channel Flowmeter!

Low Maintenance, Effective, Easy to Install, and Flexible Solution!

Flo-Dar is the Way to Go!



Introducing the state-of-art, Flo-Dar Radar Based Flowmeter, the perfect solution for difficult flows (Large Man Made Channels, Flows with High Solids, High Temperature Flows, Shallow Flows, High Velocities, and Caustic Flows). Finally, troublesome maintenance caused by sensor fouling is virtually eliminated with the Flo-Dar! The Flo-Dar utilizes proven radar velocity sensing technology to measure flow from above the fluid.

Shown here to the left is a typical installation for the Marsh McBirney Flo-Dar using a temporary mount. For additional information, click the link below to jump directly to Marsh-McBirney's corporate web page.

>> Hach Flow Flo-Dar Product Page







See how the Flo-Dar Technology Works!

To view a flash online demo of how the Flo-Dar technology measures flow please visit>> : FLODAR DEMO PAGE

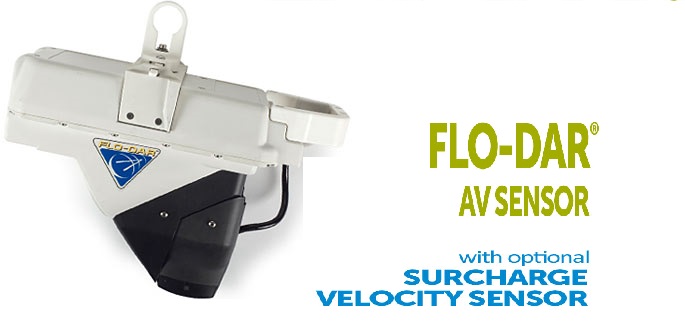

NEW!  Email us for information on the new Flo-Dar with submerged velocity sensor!   4 sensors in 1, now available with new communications options including RF, cellular, and remote downloading capabilities!

Flo-Dar Benefits::


  • Limited / Reduced Sensor Cleaning

  • Advanced Sensor Technology (Non-Contact)

  • Reduce confined space entries by 90% or more

  • Personnel have no contact with the flow during installation

  • Maintenance caused by sensor fouling is eliminated

  • Optional Site Profiling for Even Higher Accuracy

  • Field Replaceable/Interchangeable Sensors and Monitors



Perfect solution for Difficult Flow Conditions:


  • Surcharge Flows (with SVS Sensor)

  • Flows with High Solids Content

  • High Temperature Flows

  • Caustic Flows

  • Large Man-Made Channels

  • High Velocities

  • Shallow Flows



Hach Releases FL900 Series Flow Logger

FREDERICK, MD - July 6, 2010 - WastewaterPR.com - Hach Company, Flow Meter Products & Services, is pleased to announce the release of their latest open channel flow metering innovation, the NEW Hach FL900 Series Flow Logger with Marsh-McBirney Flo-Dar™ Sensor.


FL900 Series flow logger

Product Literature / Brochures >> Click Here to View & Download (PDF)

Flo-Dar Sensor Brochure >> Click here to Download (PDF)

Understanding the Flo-Dar System Brochure >> Click here to Download (PDF)

Hach FL900 Data Logger >>Click here to Download (PDF)

Hach Company, Flow Meter Products & Services, is pleased to announce the release of their latest open channel flow metering innovation, the NEW Hach FL900 Series Flow Logger with Marsh-McBirney Flo-Dar™ Sensor. The system provides users with an economical, time-saving wireless (or standard) flow monitoring solution for municipal and industrial applications. Together, the rugged FL900 Series Flow Logger and proven noncontact

Flo-Dar Sensor streamline the flow monitoring process by reducing site time while increasing the safety of flow monitoring personnel. The FL900 Series Logger features include instant verification of on-site operation/communication, real time alarms sent directly to email or mobile phones, and intuitive set-up and data management software. The non-contact Flo-Dar sensor further enhances personnel safety by eliminating sensor maintenance and confined space entry while reducing flow monitoring costs. Wireless FL900 Flow Logger models utilize Hach FSDATA™ web-based software that eliminates site visits to collect flow data allowing users to easily manage their flow data 24/7.

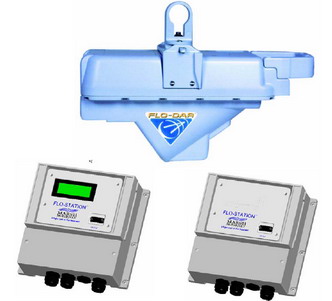

Flo-Dar Permanent AC / DC Powered Displays (with LCD or without LCD)

For an Online Flash Product Demonstration of the Flo-Dar >> click here <<



Open Channel and Closed Conduit Flowmeter Applications.

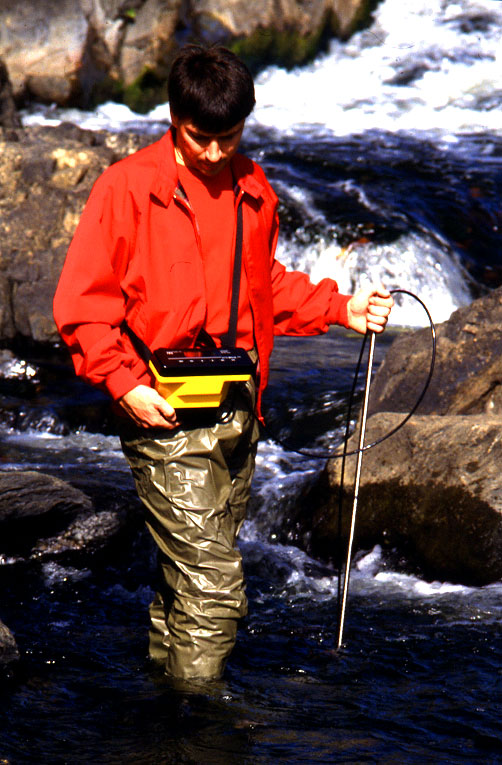

Flo-Mate Model 2000 (now discontinued, and replaced with the Hach FH950)

Marsh McBirney has an excellent line of portable Electromagnetic Flowmeters including the popular Flo-Mate Model 2000. The popular Model 2000 utilizes a magnetic sensor based on Faraday's Law for superior accuracy and reliability. A favorite among municipalities and industry experts. Ideal device for calibration of weirs, flumes and other primary devices. Sensors also available for full pipe applications. Electromagnetic sensors are perfect for clean water and also process water applications and perform where traditional doppler type sensors fail as they require sediment in the flow.

Click Image for Specifications

Lightweight, rugged field construction with no moving parts, water resistant electronics, data storage/recall capability, battery operation, and fixed period averaging make it the clear choice in velocity flowmeters.

Ideal for:

bullet

Rivers & Streams

bullet

Flume/Weir Calibration

bullet

Mining Channels

bullet

Irrigation Channels

bullet

Sewers

bullet

Most Open Channel Flow Applications

Popular Open Channel measurement tool for environmental consultants, water resource engineers, governmental and environmental agencies, industrial velocity profiling and cross confirmation of flowmeters.

Excellent for both high and low flow measurement.



Flo-Tote 3

Building on the success of thousands of installations worldwide we are pleased to introduce the " Flo-Tote 3 " - the new generation of the world's most popular sewer flowmeter. Marsh-McBirney's "Flo-Tote 3" portable flowmeters are based on the original and unsurpassed velocity/area measurement sensors and techniques. Continuous product innovation has made it possible to combine proven sensor design with state-of-the art technology.

In addition to the accuracy and ease-of-use our customers have come to expect the "Flo-Tote 3" offers some exciting new features:


  • Disconnectable sensor for quick and easy replacement

  • Interchangeable with Flo-Dar sensors

  • Room to store more data with a storage capacity increased to 64K

  • Extended battery life

  • Pocket PC compatible for data collection convenience.

Hach Flo-Tote 3 Product Animation (Flash) >>> Click Here to see how it works!

Hach Flo-Tote 3 Product Brochure Download>>> Click Here

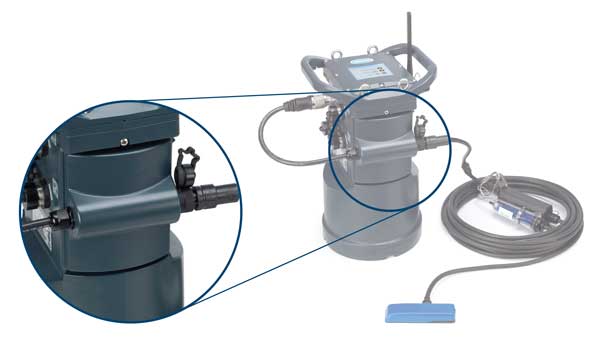

Hach AV9000

Analyzer Module / Sub Area Velocity Sensor



Hach AV 900 Product Animation (Flash) >>> Click Here to see how it works!

Hach AV 900 Product Brochure Download>>> Click Here

Advanced Diagnostic Tools and Settings for Difficult Sites

For ease of use in the majority of sites, our factory default settings have been carefully selected to streamline set up, maximize battery life, and provide reliable data. For difficult sites and users desiring in-depth analysis and custom settings, the full set of diagnostic tools and advanced architecture of the AV9000 Area Velocity Analyzer facilitate collection of useful flow data in even the most difficult sites.

Improved Accuracy

The AV9000 Area Velocity Analyzer module is compensated for temperature, thus eliminating potential velocity errors of 2.7% over a 10ºC seasonal swing. Its advanced multi-scale digital Doppler analysis provides the optimal combination of resolution and noise immunity. Mirror Image Processing™ eliminates sign errors and the advanced Target Set Processing™ reduces the impact of dominant targets (particles) in the stream to deliver a more representative velocity. More accurate data produces more accurate billing.

Improved Accuracy

The AV9000 Area Velocity Analyzer module is compensated for temperature, thus eliminating potential velocity errors of 2.7% over a 10ºC seasonal swing. Its advanced multi-scale digital Doppler analysis provides the optimal combination of resolution and noise immunity. Mirror Image Processing™ eliminates sign errors and the advanced Target Set Processing™ reduces the impact of dominant targets (particles) in the stream to deliver a more representative velocity. More accurate data produces more accurate billing.

Confidence in Your Data

Don't risk missing an event. Have confidence in your data before you leave the site from real time sensor diagnostic feedback and measurement flags.

Less Maintenance and Troubleshooting

Submerged AV sensors are available with either oil-filled or non-oil-filled cover plates. The oil-filled models are designed for sites susceptible to fouling. Use the non-oil-filled cover plate model in sites where the pipe could run dry.



The Hach Flow / Marsh Flowmeter Family: Constantly Expanding and Improving to meet your needs!

Click Image Below to Jump to Marsh McBirney's Corporate Webpage

Marsh McBirney Quick Links:

EST Product Brochures & Manual Support Page:
